Conductor aéreo de aluminio ACSR / AW, conductor de aluminio Revestido de aluminio reforzado con acero

VISIÓN DE CONJUNTO ESPECIFICACIONES

CONSTRUCCIÓN PARÁMETRO

VISIÓN DE CONJUNTO

DESCRIPCIÓN

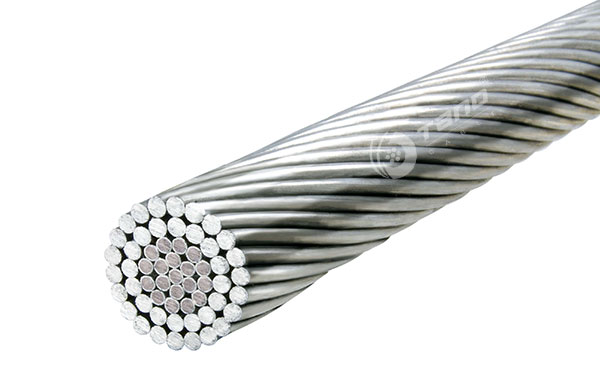

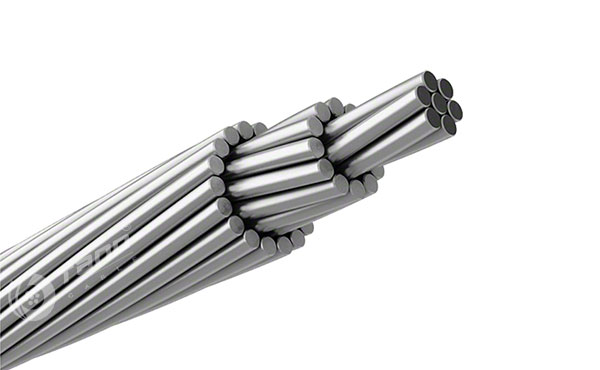

El conductor ACSR / AW está formado por varios hilos de Aluminio y Acero revestido de Aluminio, trenzados en capas concéntricas.

APLICACIÓN

El conductor ACSR / AW se utiliza como transmisión aérea desnuda y como cable de distribución primario y secundario.
ACSR / AW ofrece características de resistencia similares a ACSR, junto con una ampacidad ligeramente mayor y resistencia a la corrosión debido al revestimiento de aluminio de los alambres del núcleo de acero.

ESTÁNDAR

ASTM B549, GB/T 1179, AS 3607

DESCARGAR
HOJA DE DATOS DEL CABLE

N/A

ASTM B549, GB/T 1179, AS 3607

LÍNEA DE TRANSMISIÓN
LÍNEA DE DISTRIBUCIÓN

N/A

ESPECIFICACIONES

RENDIMIENTO ELÉCTRICO

N/A

ESTÁNDAR

ASTM B549, GB/T 1179, AS 3607

APLICACIÓN

LÍNEA DE TRANSMISIÓN
LÍNEA DE DISTRIBUCIÓN

IDENTIFICACIÓN DEL NÚCLEO

N/A

DESEMPEÑO QUÍMICO

N/A

RENDIMIENTO MECANICO

CONSULTE LAS NORMAS RELATIVAS

RENDIMIENTO DE FUEGO

N/A

RENDIMIENTO TERMINAL

N/A

OTRAS PROPIEDADES

APROBACIONES

N/A

CONDICIONES DE INSTALACION

AIRE LIBRE

MARCADO DE CABLES

N/A

EMBALAJE

DE MADERA O ACERO-MADERA O CARRETE DE ACERO COMPLETO/TAMBOR

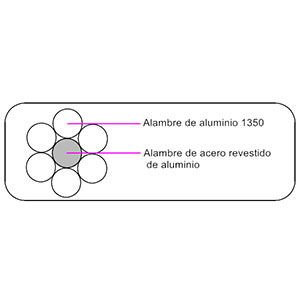

CONSTRUCCIÓN

1. Conductor

1)Capa exterior: Alambre de aluminio 1350
2)Centro: Alambre de acero revestido de aluminio

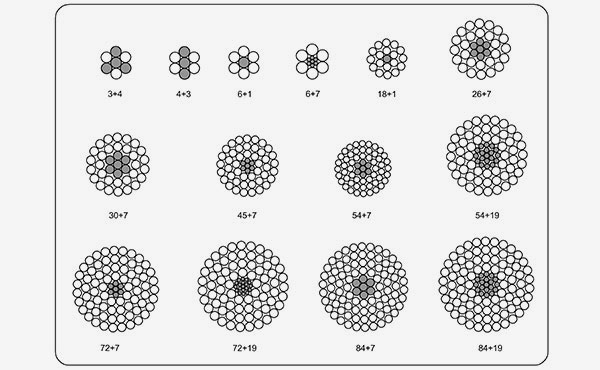

Generalmente, el conductor ACSR / AW está formado por la siguiente construcción:

PARÁMETRO

AS 3607

ASTM B549

GB/T 1179

Nombre Código	No.& Diámetro de Alambre		Área de Sección Transversal			Aprox. Diámetro Total	Aprox. Peso	Carga de Rotura Calculada	Max. Resistencia DC a 20 ° C
	No.& Diámetro de Alambre		Área de Sección Transversal
	Aluminio	Acero revestido de aluminio	Aluminio	Acero revestido de aluminio	Total
	No/mm	No/mm	mm2	mm2	mm2	mm	kg/km	kN	Ω/km
SKATING	3/1.75	4/1.75	7.2	9.6	16.8	5.3	83	12.3	2.7500
SOCCER	3/2.50	4/2.50	14.7	19.6	34.3	7.5	171	24.9	1.3400
SWIMMING	4/3.00	3/3.00	28.3	21.2	49.5	9	218	28.9	0.8070
TENNIS	4/3.75	3/3.75	44.2	33.1	77.3	11.3	340	42.6	0.5170
ANGLING	6/2.50	1/2.50	29.5	4.9	34.4	7.5	113	10.6	0.9230
ARCHERY	6/3.00	1/3.00	42.4	7.1	49.5	9	163	15.1	0.6410
BASEBALL	6/3.75	1/3.75	66.3	11.0	77.3	11.3	254	22.3	0.4100
BOWLS	6/4.75	7/1.60	106	14.1	120	14.3	385	32.7	0.2590
CRICKET	30/2.50	7/2.50	147	34.4	182	17.5	636	64.4	0.1820
DARTS	30/3.00	7/3.00	212	49.5	262	21	913	91.6	0.1260
DICE	30/3.25	7/3.25	249	58.1	307	22.8	1070	106	0.1080
DIVING	30/3.50	7/3.50	289	67.3	356	24.5	1240	122	0.0928
GOLF	54/3.00	7/3.00	382	49.5	431	27	1380	120	0.0726
GYMNASTICS	54/3.25	7/3.25	448	58.1	506	29.3	1620	139	0.0619
HURDLES	54/3.50	7/3.50	519	67.3	587	31.5	1880	159	0.0533
LACROSSE	54/3.75	19/2.25	596	75.5	672	33.8	2150	180	0.0465
RUGBY	54/4.75	19/2.85	957	121.0	1078	42.8	3450	288	0.0290

Expand More

Nombre Código	Tamaño Nominal		No.& Diámetro de Alambre		Aprox. Diámetro Total	Aprox. Peso	Carga de Rotura Calculada	Max. Resistencia DC a 20 ° C
			No.& Diámetro de Alambre
			Aluminio	Acero revestido de aluminio
			Aluminio	Acero revestido de aluminio
	AWG or KCM	mm2	No/mm	No/mm	mm	kg/km	kgf	Ω/km
Swan/AW	4	21.15	1/2.118	1/2.118	6.36	81.2	807	1.28500
Swanate/AW	4	21,15	1/2.614	1/2.614	6.54	933.0	1034	1.25100
Sparrow/AW	2	33.63	6/2.672	1/2.672	8.02	129.3	1252	0.80780
Sparate/AW	2	33.63	7/2.474	1/3.299	8.25	148.6	1592	0.78610
Robin/AW	1	42.41	6/3.00	1/3.00	9.00	162.9	1565	0.63980
Raven/AW	1/0	53.51	6/3.371	1/3.371	10.11	205.7	1928	0.50760
Quail/AW	2/0	67.44	6/3.782	1/3.782	11.35	258.9	2327	0.40120
Pigeon/AW	3/0	85.03	6/4.247	1/4.247	12.74	326.5	2858	0.31980
Penguin/AW	4/0	107.2	6/4.77	1/4.77	14.31	411.9	3488	0.25350
Waxwing/AW	266.8	135.1	18/3.091	1/3.091	15.46	421.8	3093	0.20880
Partridge/AW	266.8	135.1	26/2.573	7/2.002	16.30	520.2	4899	0.20240
Ostrich/AW	300	152.0	26/2.728	7/2.121	17.27	584.6	5488	0.18010
Merlin/AW	336.4	170.4	18/3.472	1/3.472	17.36	532.2	3874	0.16550
Linne/AW	336.4	170.4	26/2.888	7/2.245	18.29	655.2	6123	0.16070
Oriole/AW	336.4	170.4	30/2.69	7/2.69	18.83	736.8	7575	0.15730
Chickadee/AW	397.5	201.4	18/3.774	1/3.774	18.87	628.9	4436	0.14000
Bran/AW	397.5	201.4	24/3.269	7/2.179	19.61	730.8	6396	0.13730
Ibis/AW	397.5	201.4	26/3.139	7/2.441	19.88	774.3	7167	0.13600
Lark/AW	397.5	201.4	30/2.924	7/2.924	20.46	870.4	8890	0.13310
Pelican/AW	477	241.7	18/4.135	1/4.135	20.68	754.9	5216	0.11670
Flicker/AW	477	241.7	24/3.581	7/2.388	21.49	8771.0	7575	0.11440
Hawk/AW	477	241.7	26/3.439	7/2.675	21.78	929.3	8573	0.11330
Hen/AW	477	241.7	30/3.203	7/3.203	22.42	1045.0	10614	0.11100
Osprey/AW	556.5	281.9	18/4.465	1/4.465	22.33	880.3	5987	0.10010
Parakee/AW	556.5	281.9	24/3.868	7/2.578	23.21	1023.0	8754	0.09807
Dove/AW	556.5	281.9	26/3.716	7/2.891	23.54	1085	9934	0.09703
Eagle/AW	556.5	281.9	30/3.459	7/3.459	24.22	1219	12156	0.09512
Peacock/AW	605	306.5	24/4.034	7/2.69	24.2	1113	9525	0.09019
Squab/AW	605	306.5	26/3.874	7/3.012	24.53	1179	10705	0.09097
Teal/AW	605	306.5	30/3.607	19/2.164	25.25	1314	12927	0.08767
Kingbird/AW	636	322.2	18/4.775	1/4.775	23.88	1007	6804	0.08750
Rook/AW	636	322.2	24/4.135	7/2.756	24.81	1169	9979	0.08583
Grosbeak/AW	636	322.2	26/3.973	7/3.089	25.16	1240	11249	0.08491
EgreYAW	636	322.2	30/3.698	19/2.22	25.89	1382	13562	0.08337
Flarningo/AW	666.6	337.7	24/4.234	7/2.822	25.4	1226	10478	0.08186
GanneVAW	666.6	337.8	26/4.067	7/3.162	25.75	1299	11793	0.08104
Starling/AW	715.5	362.5	26/4.214	7/3.277	26.69	1395	12474	0.07546
Redwing/AW	715.5	362.5	30/3.922	19/2.352	27.45	1554	15150	0.07415
Cuckoo/AW	795	402.8	24/4.623	7/3.081	27.73	1461	12474	0.06867
Drake/AW	795	402.8	26/4.442	7/3.454	28.13	1550	13834	0.06792
Tern/AW	795	402.8	45/3.376	7/2.25	27.01	1300	9752	0.07005
Condor/AW	795	402.8	54/3.081	7/3.081	27.73	1460	12610	0.06861
Mallard/AW	795	402.8	30/4.135	19/2.482	28.95	1728	16828	0.06670
Ruddy/AW	900	456	45/3.592	7/2.395	28.74	1472	10886	0.06188
Canary/AW	900	456	54/3.279	7/3.279	29.51	1654	14061	0.06067
Rail/AW	954	483.4	45/3.698	7/2.466	29.59	1560	11521	0.05837
Cardinal/AW	954	483.4	54/3.376	7/3.376	30.38	1753	14923	0.05722
Oftlan/AW	1033.5	523.6	45/3.848	7/2.565	30.78	1689	12292	0.05384
Curlew/AW	1033.5	523.6	54/3.513	7/3.513	31.62	1898	15921	0.05279
Bluejay/AW	1113	563.9	45/3.995	7/2.664	31.97	1821	13290	0.05269
Finch/AW	1113	563.9	54/3.647	19/2.189	32.83	2045	17010	0.04931
Bunting/AW	1192.5	604.2	45/4.135	7/2.756	33.08	1950	14197	0.04669
Grackle/AW	1192.5	604.2	54/3.774	19/2.266	3398	2190	18234	0.04603
Biftern/AW	1272	644.5	45/4.27	7/2.847	34.16	2080	15150	0.04380
PheasanUAW	1272	644.5	54/3.899	19/2.339	35.09	2336	19232	0.04315
Dipper/AW	1351.5	684.8	45/4.402	7/2.934	35.21	2210	16102	0.04121
Marlin/AW	1351.5	684.8	54/4.018	19/2.41	36.16	2481	20457	0.04062
Bobolink/AW	1431	725.1	45/4.529	7/3.02	36.25	2340	17055	0.03891
Plover/AW	1431	725.1	54/4.135	19/2.482	37.23	2628	21636	0.03835
Nuthatch/AW	1510.5	765.3	45/4.653	7/3.101	37.22	2470	18008	0.03688
Parro/AW	1510.5	765.3	54/4.247	19/2.548	38.22	2771	22816	0.03626
Lapwing/AW	1590	805.6	45/4.775	7/3.183	38.2	2601	18960	0.03507
Falcon/AW	1590	805.6	54/4.359	19/2.616	39.23	2920	24040	0.03452
Chukar/AW	1780	9019	84/3.698	19/2.22	40.69	2999	22407	0.03191
Bluebird/AW	2156	1092.5	84/4.069	19/2.441	44.76	3630	26762	0.02585
Kiwi/AW	2167	1098	72/4.407	7/2.939	44.07	3371	22271	0.02604
Thrasher/AW	2312	1171.5	76/4.43	19/2.068	45.78	3683	25084	0.02432
Joree/AW	2515	1274.4	76/4.62	16/2.156	47.74	4007	27306	0.02236
Grouse/AW	80	40.5	8/2.54	1/4.242	9.32	204.9	2218	0.63710
Petrel/AW	101.8	51.5	12/2.339	7/2.339	11.7	342.1	4495	0.46750
Minorca/AW	110.8	56.1	12/2.441	7/2.441	12.2	372.5	4899	0.43500
Leghorn/AW	134.6	68.2	12/2.69	7/2.69	13.45	452.3	5897	0.35370
Guinea/AW	159	80.5	12/2.924	7/2.924	14.62	534.4	6940	0.29930
Dotterel/AW	176.9	89.6	12/3.084	7/3.084	15.42	594.4	7666	0.26910
Dorking/AW	190.8	96.6	12/3.203	7/3.203	16.01	641.4	8301	0.24940
Brahma/AW	203.2	102.9	16/2.863	7/2.482	18.13	896.9	12292	0.21550
Cochin/AW	211.3	107	12/3.371	7/3.371	16.85	710.3	8981	0.22520

Expand More

Nombre Código	Área de Sección Transversal			No.& Diámetro de Alambre		Aprox. Diámetro Total	Aprox. Peso	Carga de Rotura Calculada	Max. Resistencia DC a 20 ° C
	Aluminio	Acero revestido de aluminio	Total	Aluminio	Acero revestido de aluminio
	Aluminio	Acero revestido de aluminio	Total	Aluminio	Acero revestido de aluminio
	mm2	mm2	mm2	mm	mm	mm	Kg/km	kN	Ω/km
15/5	17.7	2.96	20.7	6/1.94	1/1.94	5.82	68.1	9.31	1.7691
25/5	27.7	4.62	32.3	6/2.42	1/2.42	7.26	106.4	14.54	1.1323
45/5	44.3	7.39	51.7	6/3.07	1/3.07	9.21	170.2	23.27	0.7077
70/10	69.8	11.6	81.4	6/3.85	1/3.85	11.6	268.0	34.79	0.4493
110/20	110	18.5	129	6/4.85	1/4.85	14.6	425.5	53.38	0.2831
143/5	143	7.94	151	18/3.18	1/3.18	15.9	445.5	55.97	0.2293
140/20	139	22.6	161	26/2.61	7/2.03	16.5	532.0	72.17	0.2279
185/10	183	10.2	193	18/3.60	1/3.60	18.0	570.3	69.21	0.1792
180/30	178	28.9	206	26/2.95	7/2.29	18.7	680.9	92.38	0.1781
230/15	229	12.7	241	18/4.02	1/4.02	20.1	712.8	86.0	0.1433
220/36	222	36.1	358	26/3.30	7/2.56	20.9	851.2	115.4	0.1424
282/30	282	27.7	310	22/4.04	7/2.25	22.9	961.7	122.25	0.1144
175/45	277	45.2	323	26/3.69	7/2.87	23.4	1064.0	141.5	0.1140
360/25	359	24.8	384	45/3.19	7/2.12	25.5	1154.6	146.3	0.0912
350/55	349	56.9	406	26/4.14	7/3.22	26.2	1340.6	178.38	0.0904
455/30	456	31.5	487	45/3.59	7/2.39	28.7	1466.1	181.32	0.0718
450/60	448	58.1	506	54/3.25	7/3.25	29.3	1621.6	215.22	0.0715
515/35	513	35.4	548	45/3.81	7/2.54	30.5	1649.4	203.99	0.0638
505/65	504	65.3	569	54/3.45	7/3.45	31.0	1824.3	240.8	0.0636
570/40	570	39.4	609	45/4.01	7/2.68	32.1	1832.6	226.6	0.0574
560/70	560	72.6	632	54/3.63	7/3.63	32.7	2027.0	259.0	0.0572
640/45	638	44.1	682	45/4.25	7/2.83	34.0	2052.6	253.8	0.0513
630/80	628	79.5	707	54/3.85	19/2.31	34.6	2261.6	293.0	0.0511
715/50	718	49.6	767	45/4.51	7/3.0	36.1	2309.1	285.58	0.0456
705/90	706	89.4	795	54/4.08	19/2.45	36.7	2544.3	329.6	0.0454
810/55	809	55.9	865	45/4.78	7/3.19	38.3	2602.3	321.8	0.0405
800/100	796	101	896	54/4.33	19/2.6	39.0	2867.4	371.5	0.0403
920/40	918	39.7	958	72/4.03	7/2.69	40.3	2798.8	336.7	0.0360
910/75	908	75.6	983	84/3.71	7/3.71	40.8	3010.0	369.1	0.0359
900/115	896	114	1010	54/4.60	19/2.76	41.4	3230.9	418.6	0.0358
1035/45	1033	44.6	1077	72/4.27	7/2.85	42.7	3148.6	378.9	0.0320
1020/85	1021	85.1	1106	84/3.90	7/3.93	43.2	3386.3	415.2	0.0319
1150/50	1148	49.6	1197	72/4.50	7/3.00	45.0	3498.5	420.9	0.0288
1290/55	1286	54.3	1340	72/4.77	19/1.91	47.7	3912.3	470.1	0.0257
1270/105	1271	104	1375	84/4.39	19/2.63	48.3	4202.7	524.73	0.0257
1435/60	1435	60.6	1495	72/5.04	19/2.01	50.4	4366.4	524.6	0.0231
1420/115	1419	116	1535	84/4.64	19/2.78	51.0	4690.5	585.6	0.0230

Expand More

CONDUCTOR DE ALUMINIO ACERO RECUBIERTO DE ALUMINIO REFORZADO (ACSR / AW)
