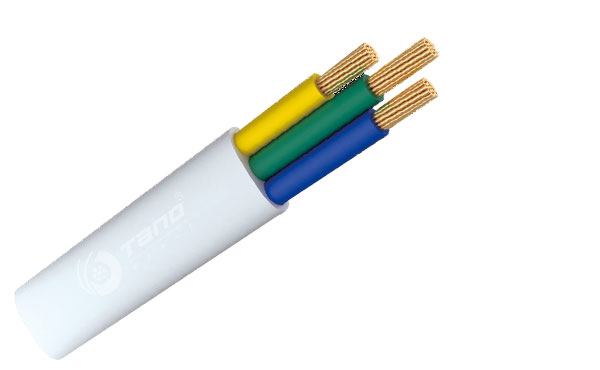

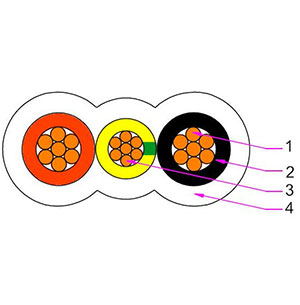

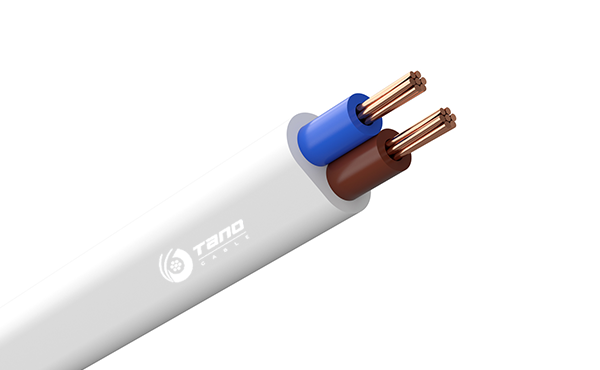

Sección Transversal Nominal | Conductor de Fase | Aislamiento de Fase | Conductor de Tierra | Aislamiento de Tierra | Vaina Exterior | Peso | |||||||
Construcción | Diámetro | Espesor Nominal | Diámetro | Construcción | Diámetro | Espesor Nominal | Diámetro | Espesor Nominal | Anchura | Altura | |||
mm2 | No./mm | mm | mm | mm | No./mm | mm | mm | mm | mm | mm | mm | kg/km | |
2x1.0+1.0 | 1/1.13 | 1.13 | 0.6 | 2.33 | 1/1.13 | 1.13 | 0.6 | 2.33 | 0.9 | 8.79 | 4.13 | 72.12 | |
2x1.5+1.5 | 7/0.52 | 1.56 | 0.6 | 2.76 | 7/0.52 | 1.56 | 0.6 | 2.76 | 0.9 | 10.08 | 4.56 | 93.63 | |
2x2.5+2.5 | 7/0.68 | 2.04 | 0.7 | 3.44 | 7/0.68 | 2.04 | 0.7 | 3.44 | 1.0 | 12.32 | 5.44 | 143.65 | |
2x4+2.5 | 7/0.85 | 2.55 | 0.8 | 4.15 | 7/0.68 | 2.04 | 0.7 | 3.44 | 1.1 | 13.94 | 6.35 | 188.97 | |
2x6+2.5 | 7/1.04 | 3.12 | 0.8 | 4.72 | 7/0.68 | 2.04 | 0.7 | 3.44 | 1.1 | 15.08 | 6.92 | 234.16 | |
2x10+4 | 7/1.35 | 4.05 | 1.0 | 6.05 | 7/0.85 | 2.55 | 0.8 | 4.15 | 1.2 | 18.65 | 8.45 | 365.37 | |
2x16+6 | 7/1.70 | 5.10 | 1.0 | 7.10 | 7/1.04 | 3.12 | 0.8 | 4.72 | 1.3 | 21.52 | 9.70 | 522.80 |
