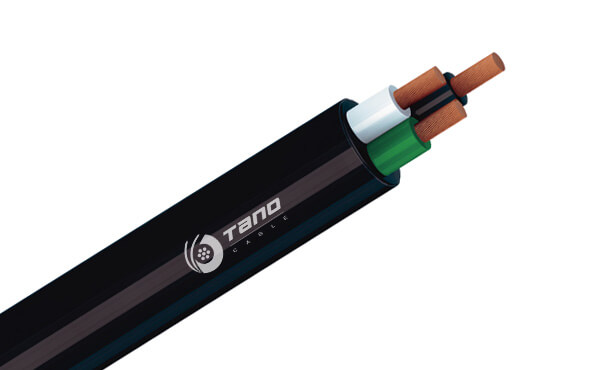

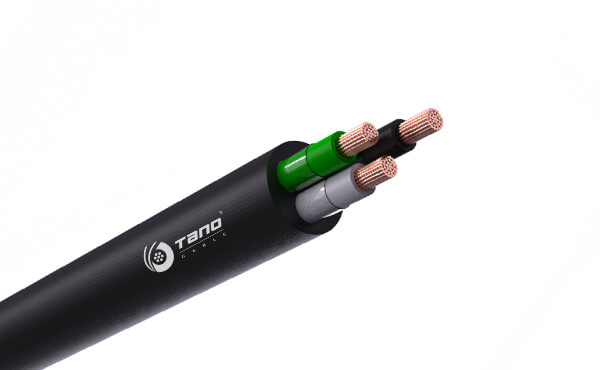

Núcleo No. x Calibre | Área de la Sección Transversal Nominal | Espesor de Cubierta Nominal | Diámetro Total Aproximado | PesoTotal Aprox. | Resistencia Eléctrica C.D Máx. @20°C |
||
AWG | mm2 | in | mm | in | mm | KG/KM | Ω/km |
Dúplex | |||||||
2x18 | 0.82 | 0.030 | 0.762 | 0.231 | 5.859 | 48.45 | 22.40 |
2x16 | 1.31 | 0.030 | 0.762 | 0.256 | 6.492 | 63.86 | 14.10 |
2x14 | 2.08 | 0.030 | 0.762 | 0.285 | 7.244 | 86.06 | 8.88 |
2x12 | 3.31 | 0.045 | 1.143 | 0.353 | 8.956 | 133.17 | 5.58 |
2x10 | 5.26 | 0.060 | 1.524 | 0.463 | 11.752 | 222.53 | 3.51 |
2x8 | 8.37 | 0.060 | 1.524 | 0.559 | 14.205 | 332.63 | 2.23 |
2x6 | 13.3 | 0.060 | 1.524 | 0.628 | 15.949 | 456.25 | 1.40 |
Triple | |||||||
3x18 | 0.82 | 0.030 | 0.762 | 0.244 | 6.192 | 58.42 | 22.40 |
3x16 | 1.31 | 0.030 | 0.762 | 0.271 | 6.874 | 78.49 | 14.10 |
3x14 | 2.08 | 0.030 | 0.762 | 0.303 | 7.684 | 107.8 | 8.88 |
3x12 | 3.31 | 0.045 | 1.143 | 0.373 | 9.469 | 166.68 | 5.58 |
3x10 | 5.26 | 0.060 | 1.524 | 0.489 | 12.420 | 276.82 | 3.51 |
3x8 | 8.37 | 0.060 | 1.524 | 0.593 | 15.063 | 417.18 | 2.23 |
3x6 | 13.3 | 0.060 | 1.524 | 0.667 | 16.942 | 582.54 | 1.40 |
Cuádruplex | |||||||
4x18 | 0.82 | 0.030 | 0.762 | 0.266 | 6.750 | 71.04 | 22.40 |
4x16 | 1.31 | 0.030 | 0.762 | 0.296 | 7.514 | 96.48 | 14.10 |
4x14 | 2.08 | 0.030 | 0.762 | 0.332 | 8.423 | 133.84 | 8.88 |
4x12 | 3.31 | 0.045 | 1.143 | 0.407 | 10.328 | 206.39 | 5.58 |
4x10 | 5.26 | 0.060 | 1.524 | 0.533 | 13.542 | 341.51 | 3.51 |
4x8 | 8.37 | 0.060 | 1.524 | 0.650 | 16.503 | 517.78 | 2.23 |
4x6 | 13.3 | 0.060 | 1.524 | 0.733 | 18.608 | 729.61 | 1.40 |
